Patrick O'Hearn
University of California at Santa Barbara
Computer Science 193: Internship in Industry
Spring 2000
About Me
What is a Router?
What is an Embedded System?
My Work at Ericsson?


In November of 1998 I began an internship with a company named Advanced Computer Communications (ACC).  Shortly after I began, Ericsson, A large wireless telecommunications company purchased ACC, and it is now Ericsson Datacom.   The company continues to focus on the design, implementation, and distribution of Access Servers, Routers, and other networking products.  It is a fast growing company with great potential for continued growth especially now that it is under the wing of Ericsson, a large and well respected company throughout the world, not just the United States.

Four years of Computer Science courses through UCSB have provided me with an excellent conceptual knowledge of the way things work in the computer world, but it has been through working at Ericsson where I have gained hands on experience in the real world.  My introduction as a software intern has placed me a in a position to write diagnostic code for our newest enterprise development product.  The engineers in my group are divided between diagnostics and application level code, and of course hardware and software.  We work side by side together in the lab, and there is plenty of overlap of responsibility.  Because I am an intern, also known as low man on the totem pole, I also pick up a great deal of additional tasks such as chip programming, cable making, and general grunt work for other engineers.

My focus, however, is software and my main task in the development of our new product has been working with diagnostic and driver code for a new system.  I cannot go into specifics on the product, but the core is a high performance router, with add on features such as a modem card to provide Remote Access Server capabilities, or a IP/PBX box for Voice Over IP and telephone management features.  I have learned a tremendous amount through my experience in the development and debugging of this and other products during my short time at Ericsson so far.  One major responsibility I was given was the configuration and testing of two on board ethernet controllers, which consisted of communicating with a new part, and integrating it into the system, as well as interfacing with the diagnostic menu system and creating and adding a new suite of tests for the new parts.  The Information I would like to present in this report is an overview and a description of the steps I took in configuring and testing the Ethernet Controllers in our new system.


A router is a device that connects two or more networks.
A group of two or more computer systems linked together is a network. There are many types of computer networks, including:
   Local area networks (LANs) :    The computers are geographically close together (usually in the same building) and connected with cables.
   Wide area networks (WANs) :   The computers are farther apart and are connected by telephone lines, radio waves, or some other media.

In addition to these types, the following characteristics are also used to categorize different types of networks:
                   Topology : The geometric arrangement of a
                       computer system. Common topologies include a
                       bus, star, and ring.

                   Protocol : The protocol defines a common set of
                       rules and signals that computers on the network
                       use to communicate. One of the most popular
                       protocols for LANs is called Ethernet. Another
                       popular LAN protocol for PCs is the IBM
                       token ring network .

                   Architecture : Networks can be broadly
                       classified as using either a peer-to-peer or
                       client/server architecture.

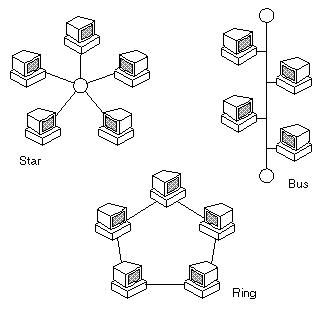

Network Topologies

Computers on a network are often called nodes.  Computers and devices that allocate resources for a network are called servers.  A device that is connected to more than one network and allows information to transfer between networks is called a Router.  There are many variations of routers and a wide range of functions that routers can fulfill.

     An embedded system can be defined as a specialized computer system that is part of a larger system or machine. Typically, an embedded system is housed on a single microprocessor board with the programs stored in ROM or other non-volatile storage.  Virtually all appliances that have a digital interface (watches, microwaves, VCRs, and cars)  utilize embedded systems. Some embedded systems include an operating system, but many are so specialized that the entire logic can be implemented as a single program.

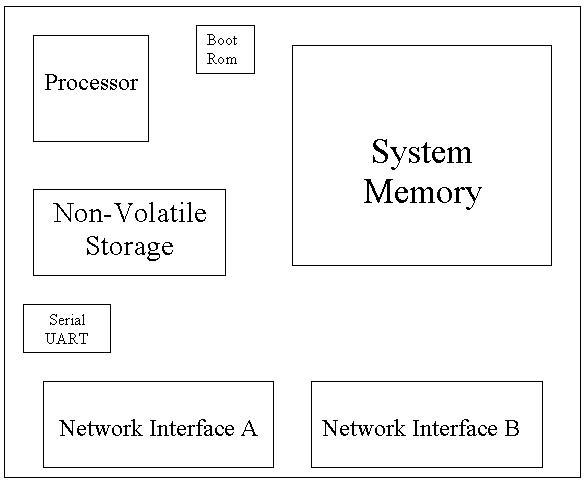

     Our example will consist of many parts which we will not discuss in detail such as busses that connect components, power supplies, and the like, instead we will focus on the most significant parts of the system that pertain to the functionality of a Router, basically consisting of those parts shown in the diagram in the left.


There is a great deal of designing, manufacturing, and hardware assembly that must take place before we are presented with a board or system  which we can work with at the software level.  The Hardware engineers must design the physical layout of the system, decide which components to use, and where to put them, and then stuff everything on the board.  Once the core components are up and running and communicating with each other properly (Processor, Memory, Boot Device, UART, PCI Bus, etc.) with the system booting and the Operating System running, then it was time for me to add the network interfaces and set them up.

The network interface adapters most commonly used in a system such as this , are PCI Ethernet controllers.  PCI (Peripheral Component Interconnect) is an industry standard bus architecture that connects the microprocessor to devices installed in special PCI expansion slots.  There are countless types of devices that can be attached to a PCI bus such as video controllers, sound controllers, modems, SCSI and IDE controllers, and many more.  Ethernet is a LAN protocol that uses either a star or bus topology.  Standard Ethernet supports data transfer rates as fast as 10mb/s (megabits per second), and today there exists two new and improved variations, Fast Ethernet which can support up to 100mb/s, and Gigabit Ethernet which can support up to 1,000 mb/s.

We will be using two Fast Ethernet Controllers from AMD which can operate at either 10mb or 100mb and will auto detect which speed to run.  The first step I took in communicating with a new device on the PCI bus, is to run what are called PCI configuration cycles on the bus.  These industry standard cycles allow us to talk to the new device and read some information about the device through its PCI registers, such as Vendor ID, Device ID, the PCI Command Register, and the Status Register.  The Vendor id is used to identify the manufacturer of the device, and the Device id is used to uniquely identify the particular model of the device.  The PCI Command Register controls the gross functionality of the device and is responsible for determining what kind of cycles the device will generate and respond to.  I will write to this register in order to enable Memory Mapping of the devices registers, and also enable the part to act a bus master on the PCI bus.

Memory mapping is a term used to describe the access to random areas throughout the system, as set up to look like plain memory accesses.  By this I mean we can access the numerous registers inside this part on the PCI bus, the same way we can access main memory, simply by setting up a mapping between memory addresses and external physical memory space.  The advantage of this is convenience.  Now we can easily read and write values in a register within a peripheral device, just as easily as we could read or write a standard memory location.

Bus Mastering is a function that can be performed by intelligent devices that have DMA (Direct Memory Access) Controllers built in, such as our network interface adapters.  DMA is the ability for a device on the PCI bus to take control of the bus and access memory without the control of the processor.  The advantage to this is (1) less overhead for the processor, and (2) greater parallelism within the system as it is possible for several components to work together concurrently as opposed to serially.  By enabling the device to be a bus mastering device, we are granting it the ability to always be ready to transmit or receive without worrying about waiting for the processor to arbitrate the bus for all data transfers.

Once we have the device in our memory map, we gain access to all the registers in the part, of which there are often many.  With the ability to read and write registers directly we can now setup the device to work exactly how we want it to by customizing the values in the various setup CSR (Control and Status Registers) registers.  I had to work closely with the manual and data sheet for the device and pick and choose which registers to modify, and then do so accordingly.  Once we have located the device on the bus, and enabled it to enable memory mapping and bus mastering, it is time to move into the testing and diagnostics phase.

Our diagnostics run through a special menu system which is separated into packages.  Each package has it own sub menu with its own set of tests and options for tests.  The first thing I needed to do was to create a new Package for the Ethernet controllers.  All my coding will be done within this new package, and the end result will be that all my tests will be launchable through the main diagnostics menu.

The first test that I  generally like to run against any new device is a simple slave register test.  This is a test that is used to make sure that it is in fact possible to read and write registers located in the part.  This can be accomplished in numerous ways, but the basic idea is to find a register or a set of registers that do not have an effect on the core functionality of the part (usually there are many test registers built into a part) and so we want to write arbitrary values to these locations.  Next we go back through the same locations and read the information back, if the data we read is the same as the data we just wrote, then I have successfully written and passed the first test.

The next logical step for an intelligent part such as this, is a bus mastering test.  This will test the parts ability to not only receive information across the bus, but also to take control of the bus and initiate data transfers across it.  This can generally be accomplished through a special built in function called an initialization routine.  Rather than programming each of the devices registers directly I can take advantage of this initialization routine, and allow it to program the part for me.  The test will basically consist of filling a memory location with the values we want to load into some specified registers, and setting the value of the appropriate location register(s) to point to that memory location.  After I have set these values, I simply tell the part to initialize (by setting the init bit in a Control Register) and it will attempt to Take control of the bus, access the memory location pointed to by the internal register(s), and transfer the information across the PCI bus from memory to the  appropriate registers in the device.  If I set the values correctly and with the proper offsets this test will also pass, confirming that the device can function properly as a bus master.

The final set of diagnostic tests I need complete will be Reliability and Stress tests which will be used to ensure that the part can function properly under strenuous activity.  First I will need to setup some very important data structures called Descriptor Rings, in order for our part to function properly.  A descriptor ring is basically a circular chunk of memory that is shared between the PCI device and the processor.  By shared, I mean that both the processor and the part have the ability to read and write this memory.  Of course I would not want to simply share the memory, we must establish some special bits within each buffer in the ring, which are to be used to determine current ownership of that buffer.  In the terms of a network adapter we will need to establish a Transmit Descriptor Ring and a Receive Descriptor Ring.  The Transmit Descriptor Ring then can be visualized as the area in memory where the processor stores the data that it wants the part to transmit, when the processor has filled a buffer with data to be transmitted he relinquishes ownership to the device so that the data may be sucked out of memory and transmitted out onto the network.  The Receive Descriptor then can be visualized as an area in memory where the Device will store any data that he receives from the network, and when he fills a buffer he will relinquish ownership of that buffer to the processor, so the processor can suck up the information and process it accordingly.  The setting and unsetting of the ownership bits is a relatively simple concept, and for the most part will all be handled within an interrupt context.  Once I have set up these Descriptors structures in memory, I have all the parts necessary to write the final tests.

The test itself will simply consist of setting the part into a loop back mode (either internal or external), then fill his transmit descriptor with the desired test pattern or values, and finally tell the part to transmit (pass the ownership of the filled Transmit Descriptor Buffers to the device).  The result of this should be the Device acquiring control of the bus, sucking information out of the Transmit Descriptor Ring and sending it out on the wire, and because the part is in loop back, the transmitted data will then instantly be received back in by the device, and transferred to the Receive Descriptor Ring.  There are many options for this kind of test variations in packet size, patterns, and information but the end result should be the same in any case.  If the device is working properly, the information stored in the Receive Descriptor Ring should be the same as the Information that was stored in the Transmit Descriptor Ring.  When this is the case I have completed the addition of my new Package, tests and all.

While the tests and procedures that I am programming into the part may not seem like a difficult or even important task, the fact of the matter is diagnostics are an extremely part of any system (and they weren't so easy for me either).  After the completion of the diags, and verification of the functionality of the parts in the system, the Application engineers can truly begin to work their magic.  They are responsible for tying in with the operating system (WindRiver's VXWorks in this case), and setting the actual addressing and routing schemes for the system as a whole.

The diagnostics are important not only during the construction of a new product, but throughout development and after release as well.  The diagnostic menu serves as a highly valuable tool in troubleshooting system problems.  By booting the system into diagnostic mode (as opposed to application mode), we can run system tests on each part of the system individually and as a whole, in order to track down problems to specific areas, as well as to distinguish between hardware and software failures.
